BCA divisions

Biology



The Biology Section performs evidence examinations, body fluid identification and DNA analysis on evidence submitted by law enforcement agencies. The section performs nuclear DNA, Y-chromosomal DNA and mitochondrial DNA testing.

A picture of lab benches in the biology lab.




Jump to:

Body fluid identification (serology)

The Biology Section conducts several types of serological examinations on evidentiary materials, including the indication of blood, seminal fluid, saliva, and urine and the identification of semen. Serological examinations may consist of color tests (blood, semen, saliva and urine), immunological tests (blood and semen) or microscopic examinations (semen). Additionally, biological material such as hair, tissue and skin cells may be collected from evidence.

Body fluid identification tests performed

Nuclear DNA

Deoxyribonucleic Acid (DNA) is also known as the molecule of life and contains the genetic instructions in the development of all living organisms. It is found in every cell in the human body, with the exception of red blood cells. Everyone has a unique genetic blueprint except for identical multiples. The Biology Section uses a technique known as Polymerase Chain Reaction (PCR) which allows the section to utilize very small amounts of DNA by making copies of targeted regions on the molecule, also known as Short Tandem Repeats (STRs). From this, the Biology Section obtains a profile from evidentiary items which can then be used to compare to known samples taken from the individuals involved in a case.

Y-chromosomal DNA

The testing process for Y-chromosomal DNA (YSTR) is the same as for autosomal nuclear DNA (autosomes are all non-sex chromosomes; normally, nuclear DNA testing refers to autosomal DNA). The difference is that Y-chromosomal DNA specifically targets the Short Tandem Repeats (STRs) located on the Y-chromosome. Since only male individuals have a Y-chromosome, this type of testing enables the detection of very small amounts of male DNA in the presence of a large concentration of female DNA. This type of testing can be especially useful in certain samples that may be tested as part of Criminal Sexual Assault cases.

Mitochondrial DNA



The BCA has been performing mitochondrial DNA (mtDNA) testing since 2005. This type of DNA is located within the mitochondria of the cell–so hundreds to thousands of copies of this DNA is present; compared to just 2 copies per nucleus for nuclear DNA. Although the extraction of mtDNA is the same as for the STR/YSTR technologies, the remainder of the testing procedure is different. For mtDNA testing, the scientist determine the sequence of the bases in two regions of the mtDNA–hypervariable regions 1 and 2 (HV1 and HV2). Some samples, such as hair shafts do not contain sufficient nuclear DNA so are unsuitable for STR/YSTR testing but can be tested using mtDNA technology because the mtDNA is located within the mitochondria.  Additionally the maternal inheritance of mtDNA allows scientists to compare the mtDNA profile of a set of remains to that of reference samples from individuals such as the mother, siblings or any other maternally related individuals of a missing person. These samples should have the same mtDNA profiles because all maternal relatives inherit the same mtDNA.

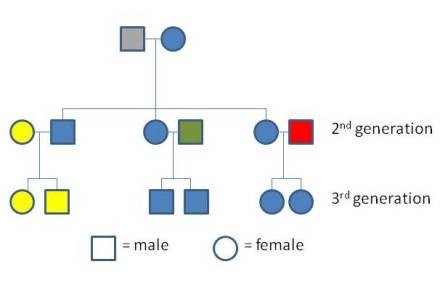

A picture showing how mitochondrial DNA is inherited from the maternal side.
mtDNA is maternally inherited.

Missing persons DNA

The BCA has been performing Missing persons casework since 2010. Due to the nature of the evidence being submitted to the section, there is an ongoing effort to continue with research and development of new tools for processing of difficult samples. The Missing Persons Section currently employs two highly sensitive autosomal STR DNA kits, a YSTR kit, an XSTR kit as well as mitochondrial DNA testing. The Missing Persons Section is one of only a few laboratories in the U.S. with the capability to provide such a comprehensive testing approach for missing persons cases.

A molar removed from skeletal remains as an example of calcified tissue.
An example of calcified tissue-a molar.

DNA profiles generated for unidentified human remains cases and those involving the missing are entered into the Combined DNA Index System (CODIS). People who are missing a family member can submit samples for DNA testing. Scientists performing missing persons casework also utilize a module of CODIS in which pedigrees are created to facilitate the searching of samples submitted from family members against profiles developed from unidentified human remains. Non-DNA information, known as metadata, can also be used during pedigree searches. Useful information such as date of last contact, missing person gender, scars and tattoos can be assigned to the pedigree. The following pedigree example has one missing person (marked as ‘?’) where two biological siblings have been typed and uploaded. The parents (marked as ‘x’) have not been typed.

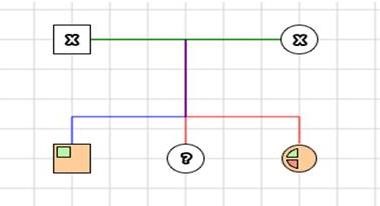

Example of a pedigree used in missing persons cases.
Example of a pedigree used in missing persons cases.



The Missing Persons section recently joined forces with the BODE technology group working missing persons casework through the NamUs (National Missing and Unidentified Persons System) program.

DNA testing procedures

1

Extraction

DNA is located within the nucleus of cells throughout the body and the extraction step is responsible for breaking open the nucleus and releasing the DNA molecules into solution. During this step it is also possible to separate the DNA molecules from all other cellular material and any other debris that may be present in a particular biological sample. Some of these materials can be potential “inhibitors” to steps later on in the DNA testing procedure so it is important to try and isolate only the DNA molecules. Common inhibitors commonly found in forensic cases are hemoglobin and indigo dyes from denim. The methods of extraction used at the BCA for evidence samples are based on the magnetic separation of beads, to which the DNA binds, from the rest of the cell content. Several robotic platforms are in use at the BCA that perform DNA extraction: The Maxwell FSC and the Automate are used for smaller batches of samples and the Hamilton Starlet robot can perform extraction through amplification set-up in a 96-well plate format. The DNA extraction step typically takes 2 to 3 hours.

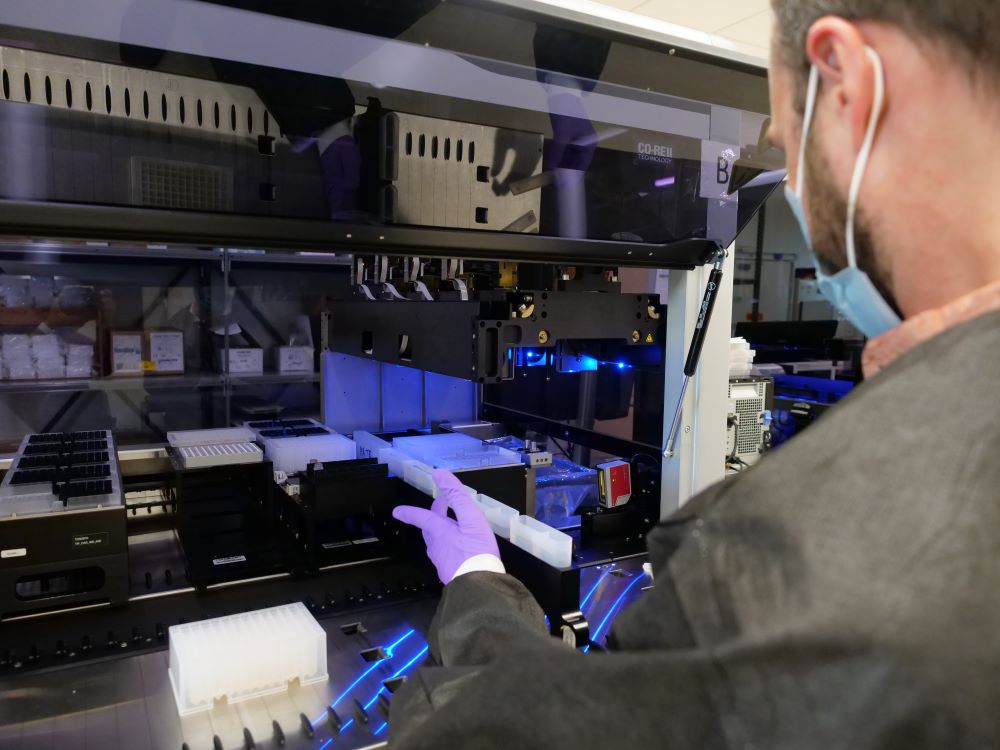

An instrument used in the biology section to break open a nucleus and release DNA molecules into solution.
2

Quantitation

One of the standards all DNA testing laboratories must meet is to ensure that the DNA recovered from an extraction is human rather than from another source such as bacteria. This is done through quantitation where the quality and quantity of DNA present in a sample is measured and assessed as well as the amount of male DNA in relation to the amount of total DNA in the sample. Determining the amount of DNA in a sample is essential for success in the next step since most amplification systems require a narrow range of input DNA. This step is completed in the Biology Section through the use of a purchased Quantifiler Trio Human Quantification Kit and then running all samples on an instrument known as the ABI PRISM 7500 Sequence Detection System. This process takes approximately 30-60 minutes to set-up and then approximately two hours to run on the instrument.

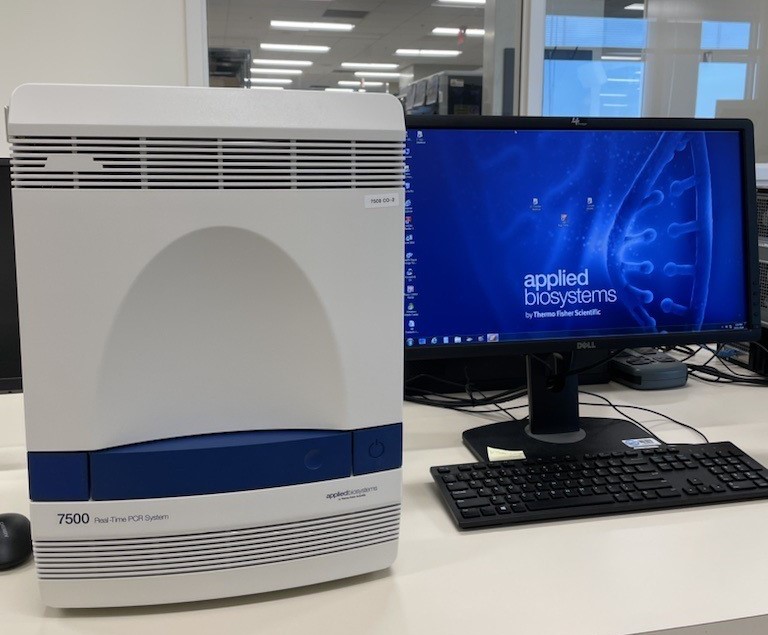

An instrument in the biology section to measure the quality and quantity of DNA present in a sample.
3

Amplification

DNA amplification is accomplished through the use of a technique known as Polymerase Chain Reaction (PCR). PCR is a process in which millions of copies of a specific sequence of DNA can be made in a matter of only a few hours. This is important for forensic DNA samples since the DNA often found at crime scenes is limited in both quantity and quality. This molecular “xeroxing” process is completed by precise heating and cooling of the samples in a thermal cycling pattern for approximately 28 cycles. The amplification kit used by the BCA amplifies 15 different regions of DNA as well as a sex-determining marker. The Biology Section uses the Globalfiler amplification kit for most samples and the Yfiler Plus amplification kit for Y-chromosomal testing. Both kits are purchased from the manufacturer. The samples are run on an instrument known as the Veriti Pro thermal cycler. This process takes approximately 15 minutes to set-up and then approximately 1.5  hours to run on the thermal cycler instrument.

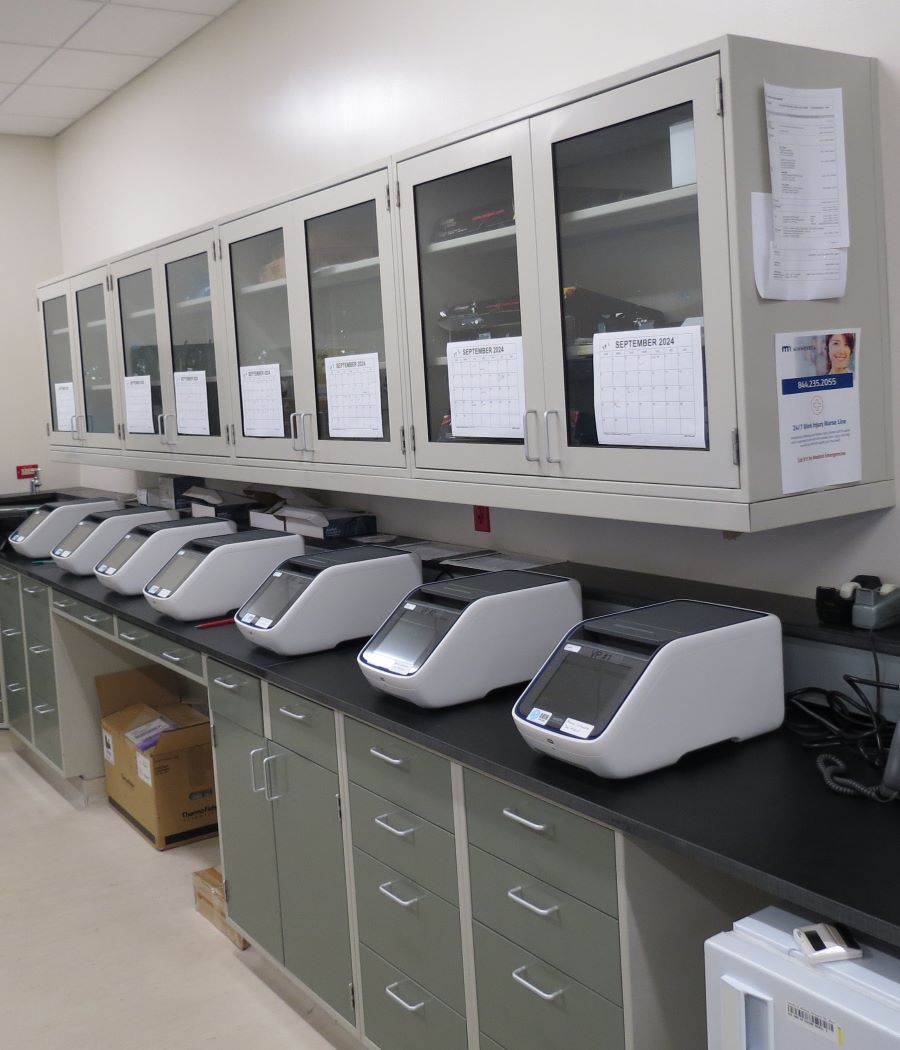

An instrument used in the biology section to make copies of DNA sequences.
4

Capillary electrophoresis (CE)

After the PCR reaction is completed it results in a large mixture of amplified DNA molecules which need to be separated in order to distinguish the various molecules from one another. This is accomplished through a process known as capillary electrophoresis. DNA molecules carry a negative charge and once an electric current is applied to the sample the molecules enter a very thin capillary filled with a gel-like polymer and migrate towards the positive anode at the other end of the capillary. The PCR products are then separated by size because the smaller DNA molecules will have an easier time migrating through the polymer than the larger DNA molecules. The data from this process is then collected on a computer attached to the CE instrument and then through the use of a software program a DNA profile is developed. The Biology Section uses an instrument called the ABI Prism® 3500 Genetic Analyzer which is capable of analyzing eight samples at a time. Set-up for this step takes approximately 10 minutes and each injection on the 3500 takes approximately 45 minutes.

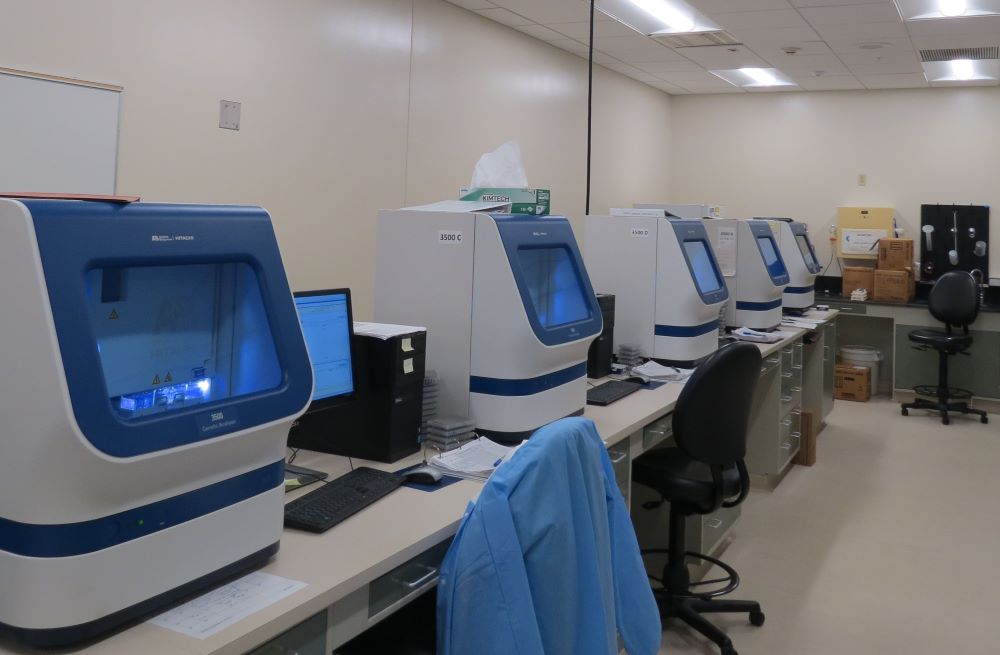

An instrument in the biology section used to distinguish the various DNA molecules from one another.
